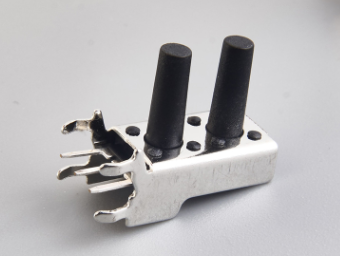

雙聯輕觸開關廠家批發價格：0.35~0.6元/個

主要技術特性:

1.環境溫度Environment temperature: -30℃~+70℃

2.相對濕度Relative Humidity: (40℃)≤95%

3.額定范圍Rating:DC12V. 50mA

4.接觸電阻Contact Resistance :≤ 0.03Ω

5.絕緣電阻Insulation Resistance: ≥100MΩ

6.耐壓強度Dielectric Strength : AC250V(50Hz for 1minute)

7.電氣壽命Electrically Life: 100,000Cycles

8.行程Travel:0.25±0.1mm

9.操作力度Operating Force:120(±30gf) 180(±30gf)  260(±30gf)

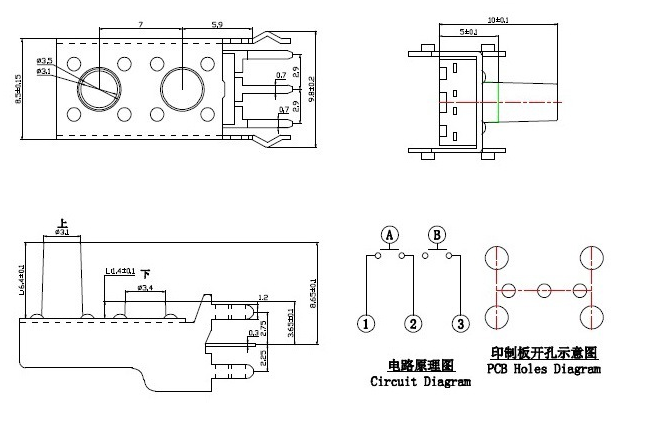

雙聯輕觸開關尺寸規格圖：
